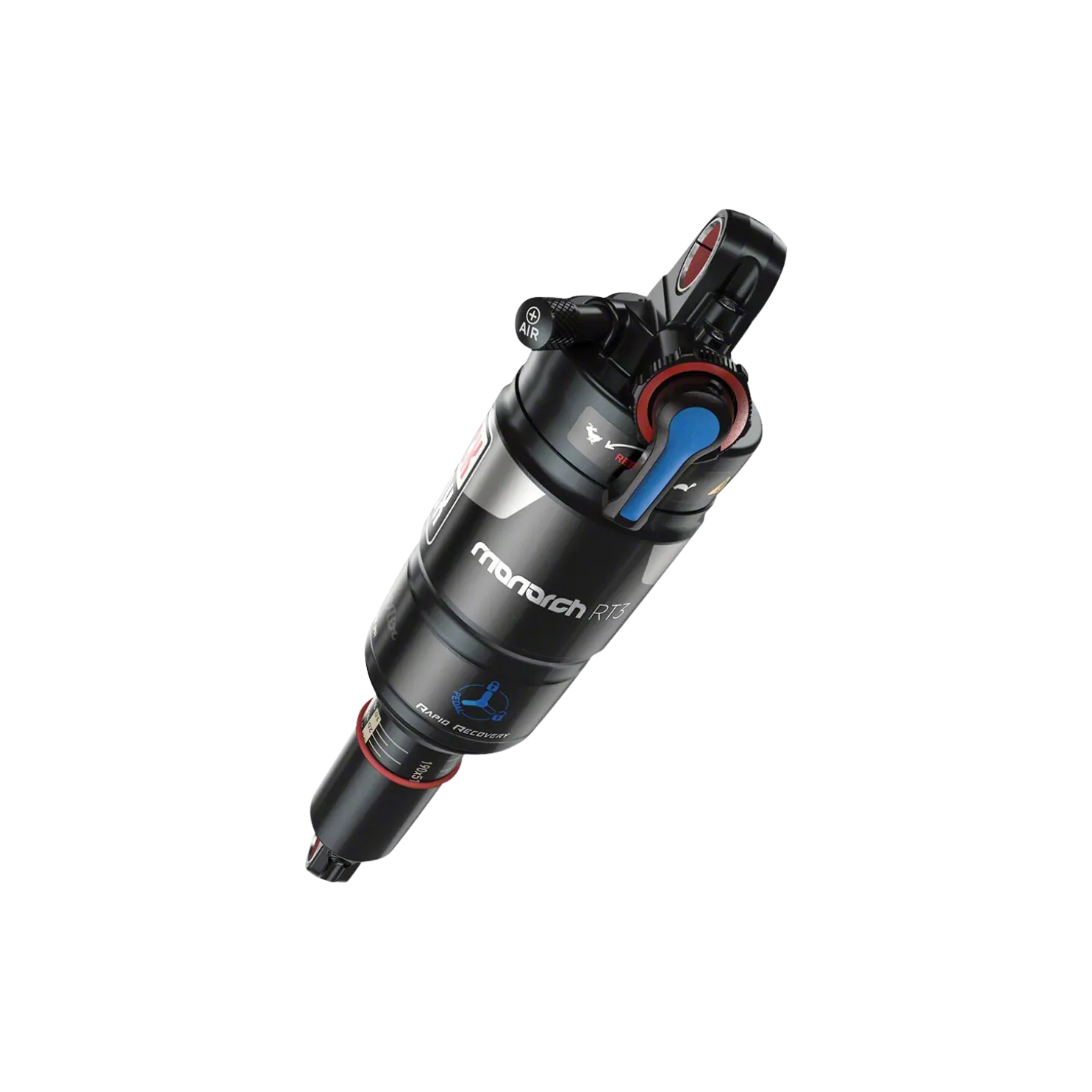

The Monarch's lightweight design not only delivers silky smooth travel, but thanks to a redesigned Solo Air spring with updated damping controls, it also delivers a spring rate you'd generally only get from a much heavier coil shock. So you get a durable, fully adjustable shock capable of smoothing out the most aggressive trails, while simultaneously saving you weight for epic cross country riding. The Monarch RT3 features external rebound and 3-Position compression adjustment (Open/Pedal/Lock).
Features
Mount hardware sold separately (2 sets required per shock)
Intended Use: XC, Trail
RT3 shocks feature external rebound and 3-Position compression adjustment (Open/Pedal/Lock)
Solo Air lets you add air to your shock through a single Schrader valve, filling both the positive and negative air spring chambers simultaneously. This gives you a plush, predictable ride you can set up in seconds, with the lightest weight air spring on the market
Rapid Recovery allows the shock to recover faster between consecutive bumps, letting the wheel track the ground with greater precision
Fast Black hard anodized, forged aluminum body with sag gradients
10mm 7075 aluminum shaft
Specifications
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Eye to eye length (ins): 7.5
Eye to eye length (mm): 190
Eyelet Diameter (mm): 12.7
Lockout Switch: Shock Mounted Switch
Metric: No
Positive Spring: Air
Stroke (ins): 2
Stroke (mm): 51
Mfr Claimed Weight
215g
Intended Use: XC, Trail
RT3 shocks feature external rebound and 3-Position compression adjustment (Open/Pedal/Lock)
Solo Air lets you add air to your shock through a single Schrader valve, filling both the positive and negative air spring chambers simultaneously. This gives you a plush, predictable ride you can set up in seconds, with the lightest weight air spring on the market
Rapid Recovery allows the shock to recover faster between consecutive bumps, letting the wheel track the ground with greater precision
Fast Black hard anodized, forged aluminum body with sag gradients
10mm 7075 aluminum shaft
Specifications
External Adjustments
Low Speed Compression Damping
External Adjustments
Rebound Damping
Eye to eye length (ins): 7.5
Eye to eye length (mm): 190
Eyelet Diameter (mm): 12.7
Lockout Switch: Shock Mounted Switch
Metric: No
Positive Spring: Air
Stroke (ins): 2
Stroke (mm): 51
Mfr Claimed Weight
215g
